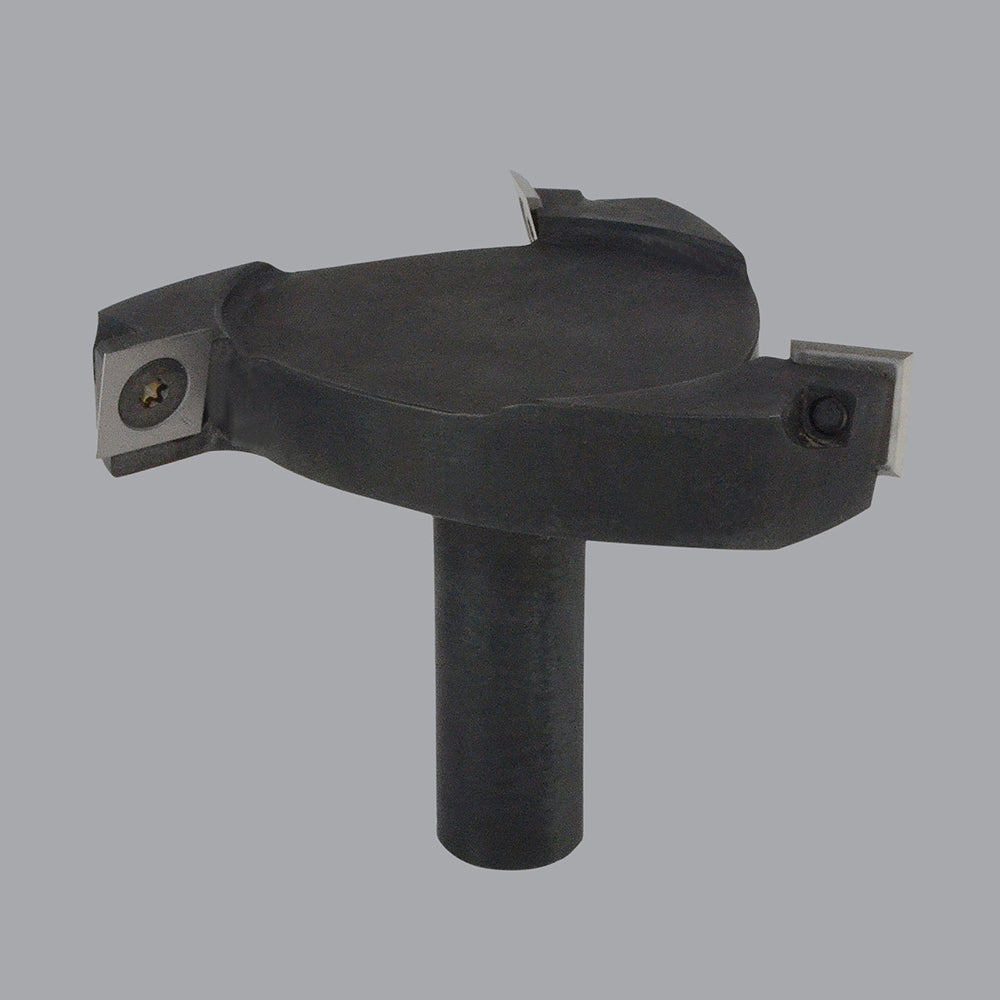

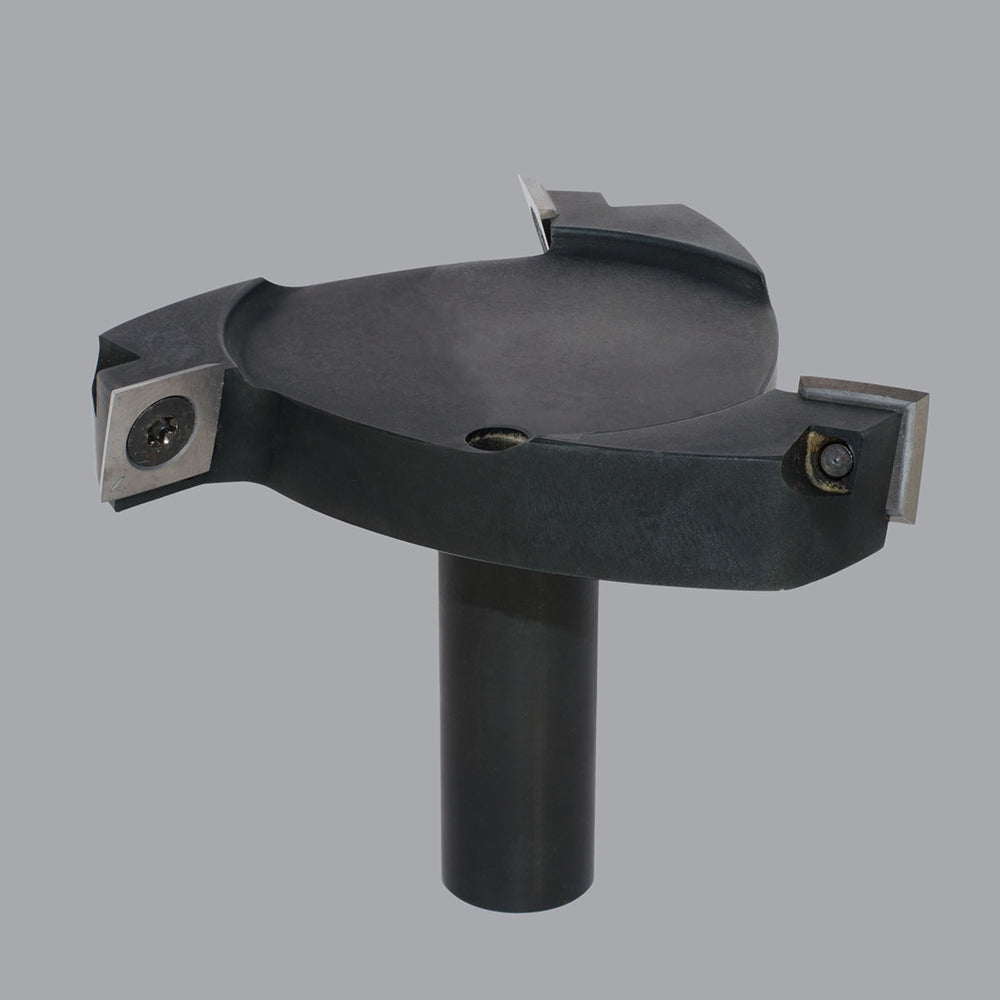

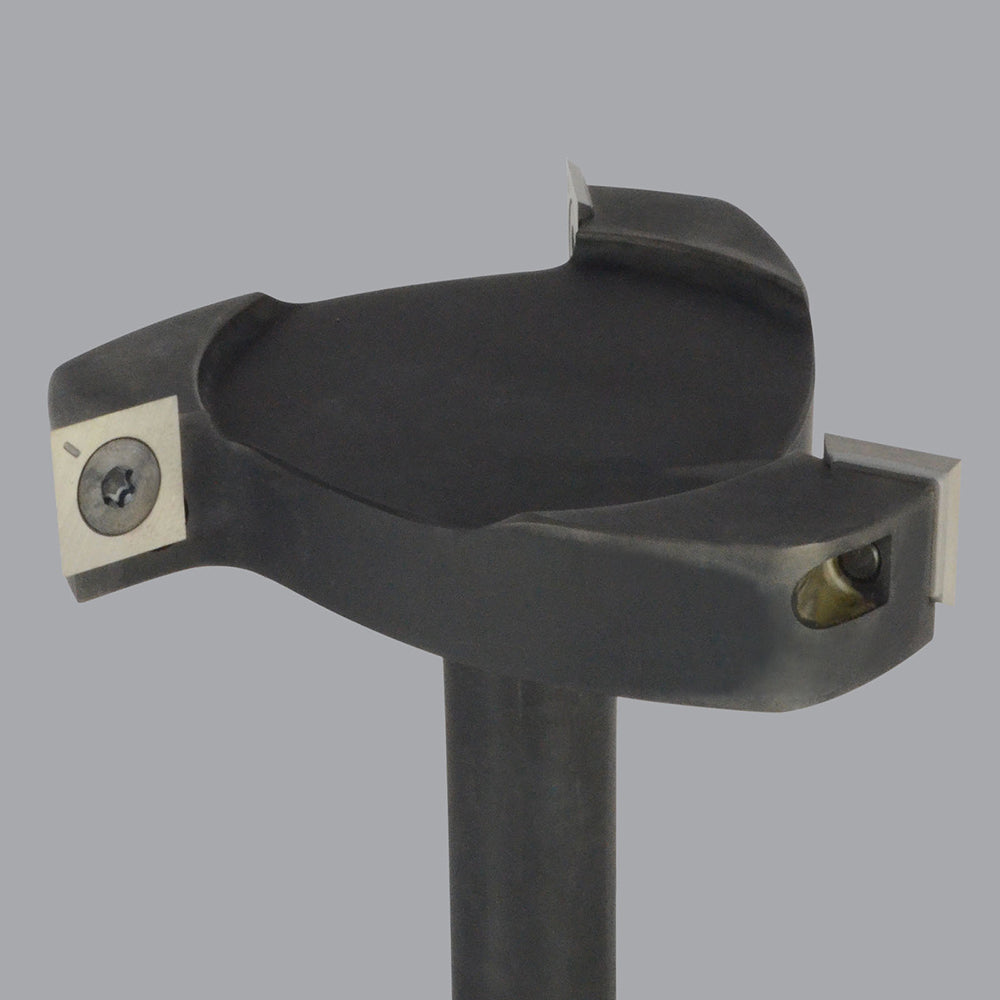

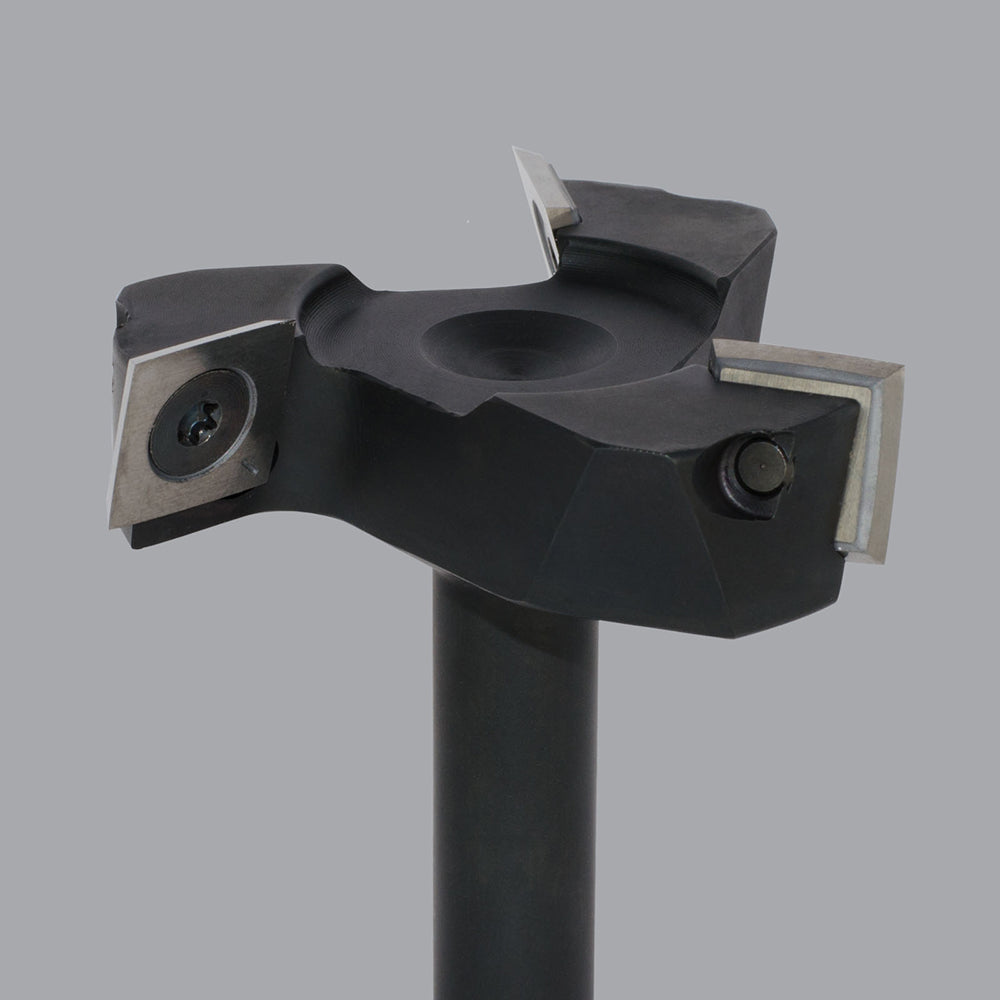

91-100 Spoilboard Surfacing Cutters

  • $51.45


Product Details

Designed for surfacing MDF, particleboard and balsa core where “flow through” or “high flow” fixturing is employed using large capacity vacuum pumps. This method of surfacing spoilboards allows for much faster table planing.


Usage:
  Aluminum, plastics and composite wood


Material:
Hard plastic, Soft plastic, Aluminum, MDF


STRAIGHT

 Part Number Cutting DIA SHK DIA SNK LGTH # of Flutes
91-000 1-1/4 1/2 1-1/2 2
91-102 2-1/2 1/2 2 2
91-106 4 3/4 2-1/4 3

 Note: 90-002, 90-004, 90-006 & 90-008 use 91-125 insert and 91-130 screw
90-014 use 91-127 insert and 91-130 screw

UP-SHEAR

 Part Number Cutting DIA SHK DIA SNK LGTH # of Flutes
91-104 2-1/2 1/2 2 2
91-108 4 3/4 2-1/4 3
91-112 2-1/2 1/2 2 3
91-114 4 3/4 2-1/4 3



 Part Number Description

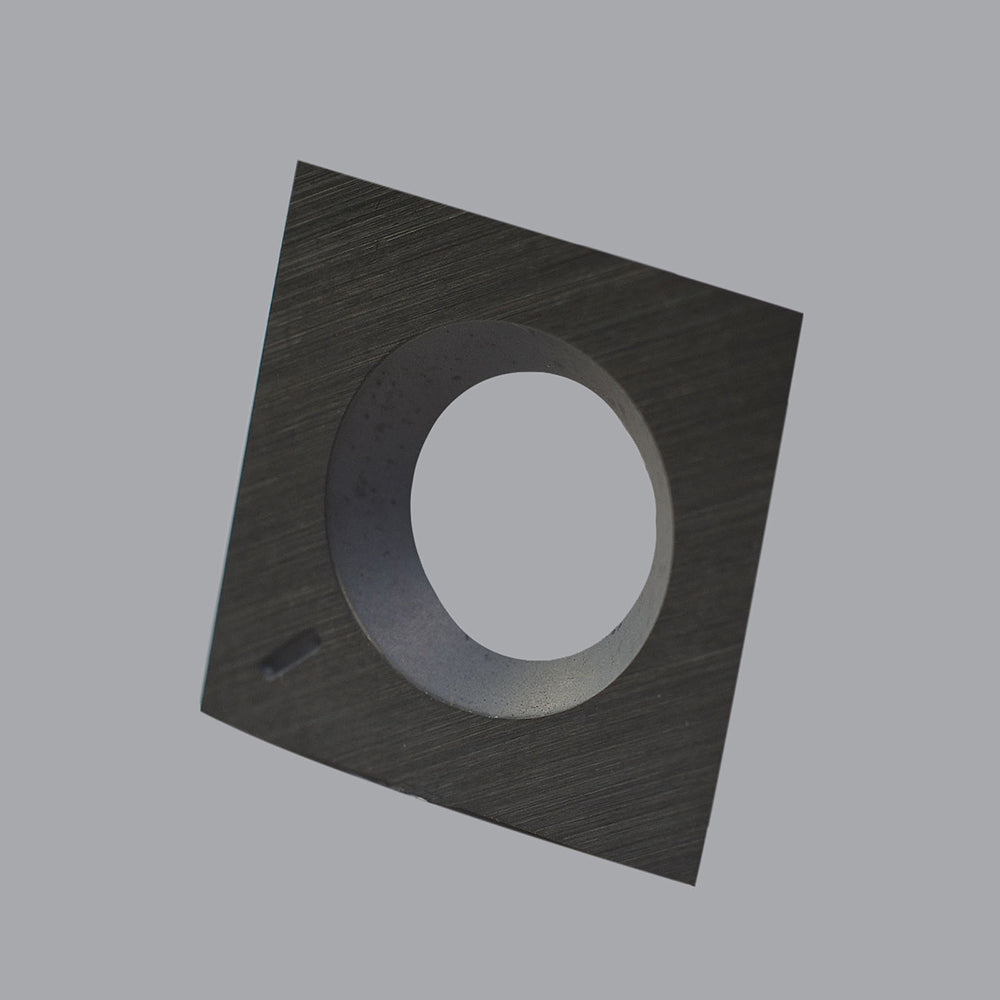

91-125 Insert 10/pk
91-127 Radius Insert 10/pk

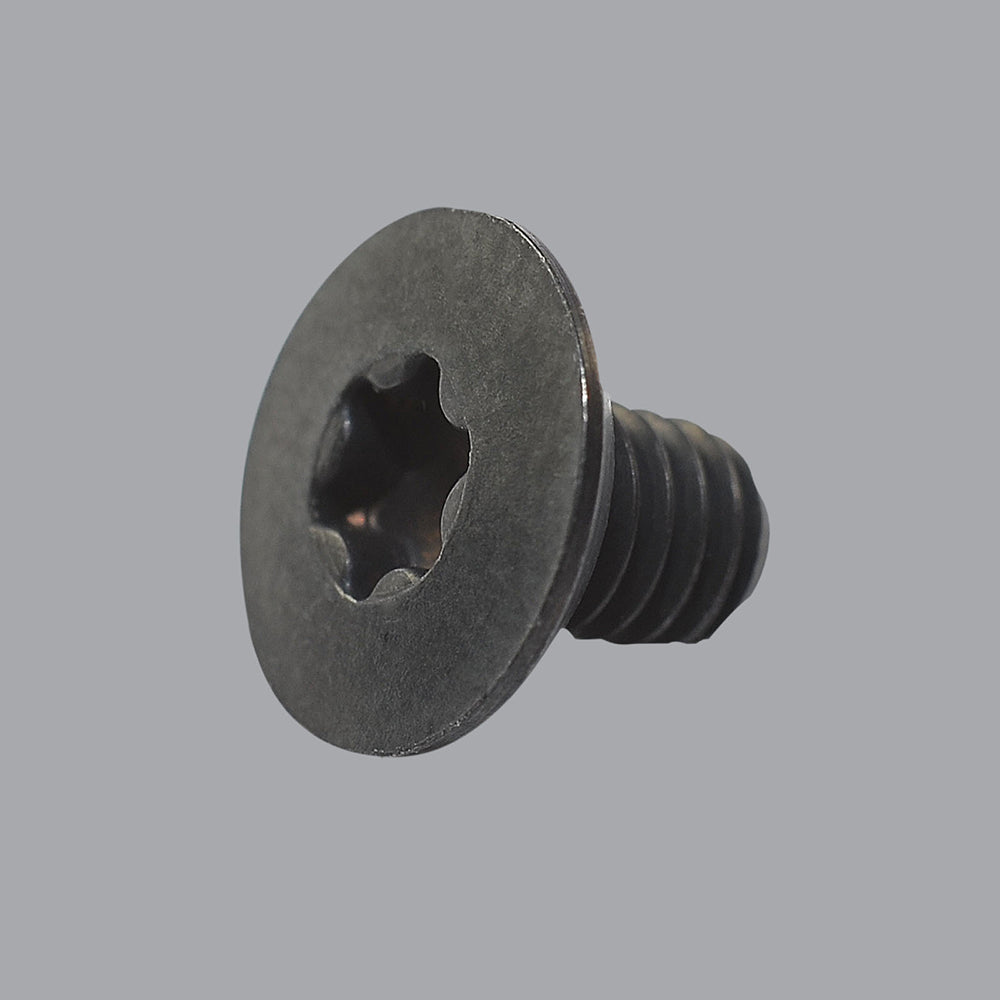

91-130 Screw M4 (Old Version)

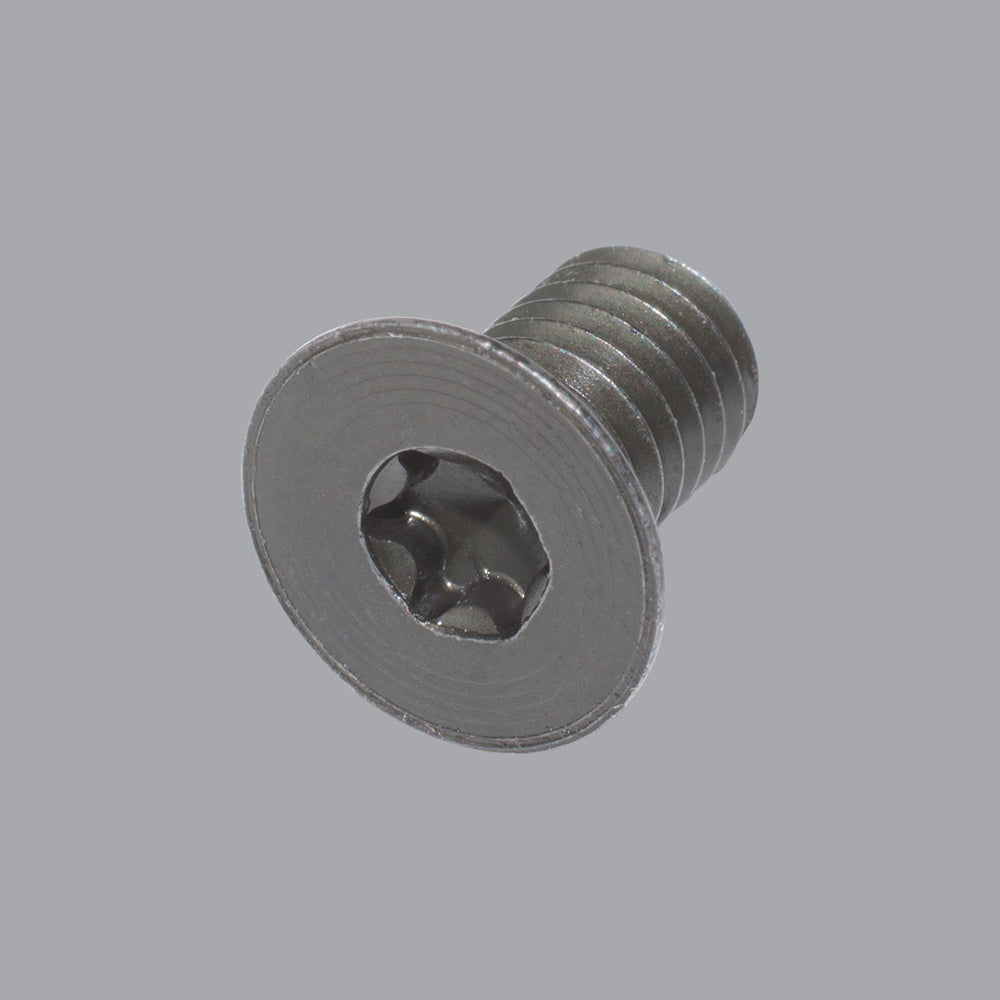

91-133 Screw M5

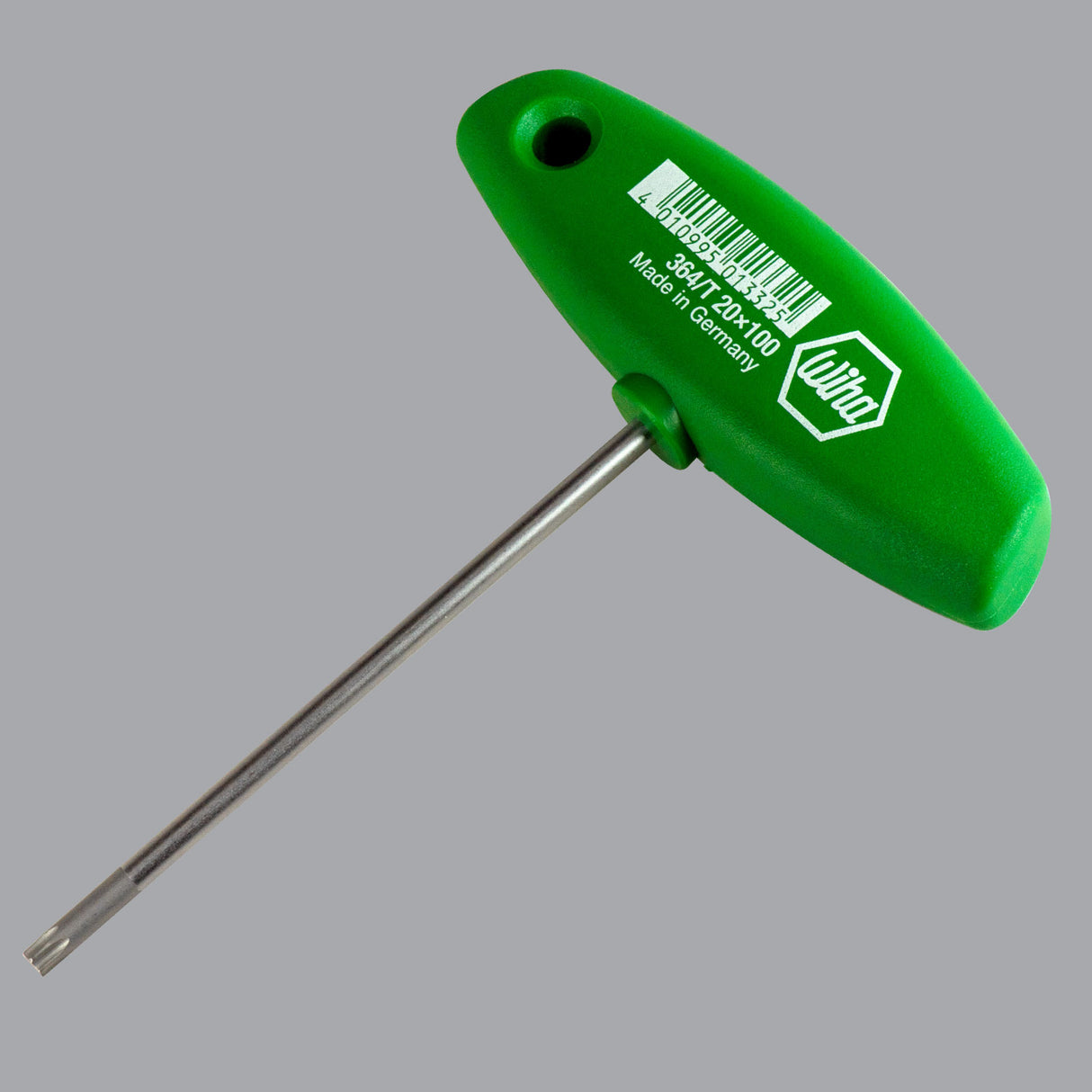

91-136 Wrench (T20)



These tools are dynamically balanced and approved for use on CNC routers. Max RPM 18,000 1/8” Depth of cut MAX.

* DOC = Maximum Depth of Cut Proper running speed for

• 2-1/2”diameter tools should be fed at 200-600 IPM at 12,000-16,000 RPM.
• 4”diameter tools should be fed at 200-600 IPM at 12,000-14,000 RPM.

* Do Not Exceed 1/8” Depth Per Pass
