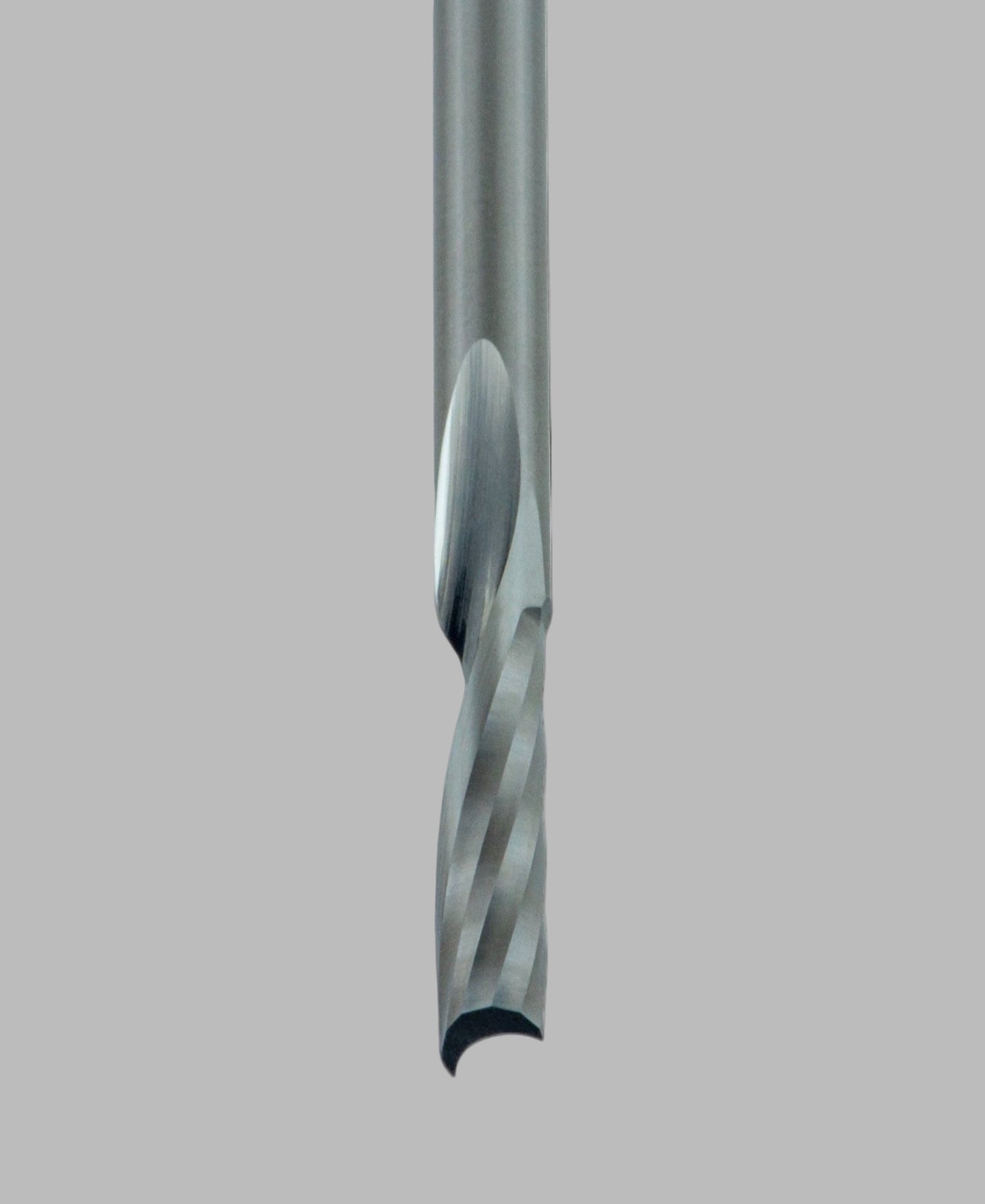

65-100 Solid Carbide Router, Single Upcut "O" Flute, Taper Core
Product Details Listed Below
Taper Core extra long length single upcut polished "O" flute router bit. Specialized core geometry to increase strength with cutting lengths up to 8 times the tool diameter. Specialized geometry combined with polished flute allows deeper cut depths and easy chip evacuation.
Usage: Thick plastic materials requiring deep cutting depth
Material: Soft plastic and Solid Surface
Part Number | Cutting Dia. | LoC | Shank Dia. | OAL |
65-101 | 3/16 | 9/16 | 3/16 | 2 |
65-103 | 3/16 | 15/16 | 3-16 | 3 |
65-105 | 3/16 | 1-5/16 | 3/16 | 3 |
65-107 | 1/4 | 3/4 | 1/4 | 2-1/2 |
65-109 | 1/4 | 1-1/2 | 1/4 | 3 |
65-111 | 1/4 | 2 | 1/4 | 3-1/2 |
65-113 | 3/8 | 3/4 | 3/8 | 3 |
65-115 | 3/8 | 1-7/8 | 3/8 | 3-1/2 |
65-117 | 3/8 | 2-5/8 | 3/8 | 4-1/2 |
