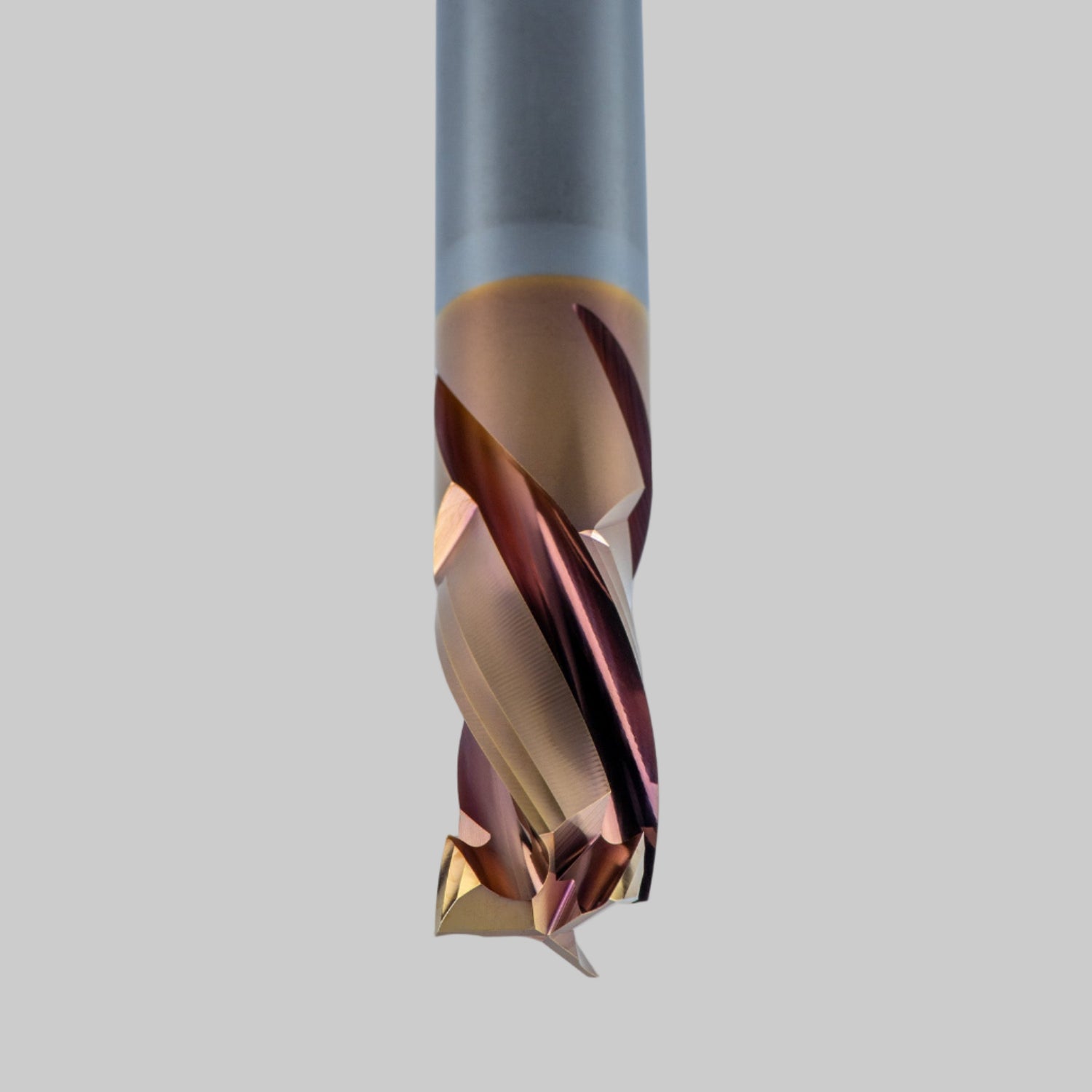

60-100EC Endurance Compression Spirals
Product Details Listed Below
The newly released Endurance Compression Series is the latest to join LMT Onsrud's lineup of compression spiral tooling. The unique coating extends tool life, and the optimized geometry aids in achieving maximum productivity when routing laminate wood, composite wood, soft wood, and hard wood.
Usage: High pressure laminates, double-sided laminates and veneered wood composites
Material: Hard wood, Soft wood, MDF, Laminated chipboard, Laminated plywood, Soft plywood, Hard plywood
| Part Number | Cutting Dia. | LoC | Upcut LoC | Shank Dia. | OAL | Flutes |
| 60-113EC | 1/4 | 7/8 | 0.188 | 1/4 | 2-1/2 | 2 |
| 60-123EC | 3/8 | 7/8 | 0.200 | 3/8 | 3 | 2 |
| 60-124EC | 3/8 | 1-1/8 | 0.406 | 3/8 | 3 | 2 |
| 60-127EC | 3/8 | 1-1/8 | 0.200 | 3/8 | 3 | 2 |
| 60-163EC | 1/2 | 7/8 | 0.200 | 1/2 | 3 | 2 |
| 60-169EC | 1/2 | 1-1/8 | 0.562 | 1/2 | 3 | 2 |
| 60-173EC | 1/2 | 1-3/8 | 0.200 | 1/2 | 3-1/2 | 2 |
| 60-171EC | 1/2 | 1-3/8 | 0.625 | 1/2 | 3-1/2 | 2 |
| 60-126EC | 3/8 | 7/8 | 0.200 | 3/8 | 3 | 3 |
| 60-176EC | 1/2 | 7/8 | 0.200 | 1/2 | 3 | 3 |
| 60-177EC | 1/2 | 1-3/8 | 0.200 | 1/2 | 3-1/2 | 3 |
