72-000 Solid Carbide Boring Bits
Product Details Listed Below

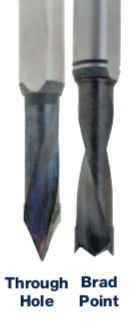

Two style of tools are available in this series. The brad point drill is designed to cut blind holes and produce a clean edge on the top surface. The 60° through drill is designed to produce through holes while providing clean edges on both sides.
Usage: Wood
Material: Hard wood, Soft wood, Laminated wood, MDF, Soft plywood, Hard plywood
BRAD POINT: Designed to produce a blind hole while preventing fraying on the top edge.
Right Hand Rotation
| Part Number | Cutting Dia. | Shank Dia. | OAL |
| 72-001 | 3 | 10 | 57 |
| 72-005 | 5 | 10 | 57 |
| 72-009 | 6 | 10 | 57 |
| 72-013 | 8 | 10 | 57 |
| 72-021 | 3 | 10 | 70 |
| 72-025 | 5 | 10 | 70 |
| 72-029 | 6 | 10 | 70 |
| 72-033 | 8 | 10 | 70 |
Left Hand Rotation
| Part Number | Cutting Dia. | Shank Dia. | OAL |
| 72-002 | 3 | 10 | 57 |
| 72-006 | 5 | 10 | 57 |
| 72-010 | 6 | 10 | 57 |
| 72-014 | 8 | 10 | 57 |
| 72-022 | 3 | 10 | 70 |
| 72-026 | 5 | 10 | 70 |
| 72-030 | 6 | 10 | 70 |
| 72-034 | 8 | 10 | 70 |
HINGE BIT - This 35mm carbide tipped bit is designed to produce a flat bottom hole with clean edges for hinge mounting.
| Part Number | Cutting Dia. | Shank Dia. | OAL |
| 72-097 | 32 | 10 | 70 |
THROUGH HOLE (60° POINT) - produces a through hole and reduces fraying on the entry and exit edges.
| Part Number | Cutting Dia. | Shank Dia. | OAL |
| 72-053 | 3 | 10 | 57 |
| 72-057 | 5 | 10 | 57 |
| 72-061 | 6 | 10 | 57 |
| 72-065 | 8 | 10 | 57 |
| 72-075 | 3 | 10 | 70 |
| 72-079 | 5 | 10 | 70 |
| 72-083 | 6 | 10 | 70 |
| 72-087 | 8 | 10 | 70 |
Left Hand Rotation
| Part Number | Cutting Dia. | Shank Dia. |
OAL |
| 72-054 | 3 | 10 | 57 |
| 72-058 | 5 | 10 | 57 |
| 72-062 | 6 | 10 | 57 |
| 72-066 | 8 | 10 | 57 |
| 72-076 | 3 | 10 | 70 |
| 72-080 | 5 | 10 | 70 |
| 72-084 | 6 | 10 | 70 |
| 72-088 | 8 | 10 | 70 |
